เครื่องฉีดโฟมแรงดันสูงไซโคลเพนเทนโพลียูรีเทนคืออะไร?

With the rapid development of industry, especially in construction, automotive, and home appliance sectors, the demand for thermal insulation materials is increasing. Polyurethane foam, as a high-quality insulation material, is widely used in various fields due to its excellent thermal insulation performance, lightweight nature, and durability. The cyclopentane polyurethane high pressure foaming injection machine, as one of the key pieces of equipment for producing polyurethane foam materials, is gradually becoming an important tool in the industry.

1. What is a Cyclopentane Polyurethane High Pressure Foaming Injection Machine ?

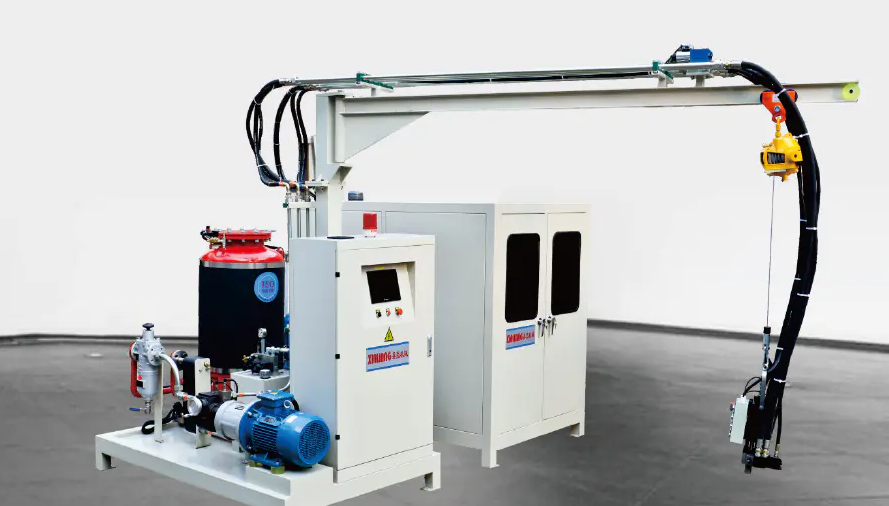

A cyclopentane polyurethane high pressure foaming injection machine is a high-pressure injection device specifically designed for producing cyclopentane polyurethane foam materials. It uses high-pressure technology to mix polyurethane raw materials with a foaming agent (such as cyclopentane), and then rapidly foams it through injection to form a foam material with excellent thermal insulation properties. Cyclopentane is a green and environmentally friendly foaming agent with low global warming potential (GWP) and zero ozone depletion potential (ODP), making cyclopentane polyurethane foam materials meet modern environmental protection and energy-saving requirements.

High-pressure foaming injection machines ensure the stability and high quality of foamed products by precisely controlling various parameters in the reaction process, such as temperature, pressure, and mixing ratio. Compared with traditional low-pressure foaming processes, high-pressure foaming not only improves production efficiency but also improves the density and structure of foamed materials, further enhancing their thermal insulation and physical properties.

2. Working Principle of Cyclopentane Polyurethane High-Pressure Foaming Injection Machine

The working principle of the cyclopentane polyurethane high-pressure foaming injection machine can be divided into several key steps:
(1) Raw Material Delivery and Mixing: The cyclopentane polyurethane high-pressure foaming injection machine first delivers the main raw materials of polyurethane (such as polyols, isocyanates, etc.) and the foaming agent (cyclopentane) to the mixing chamber via a high-pressure pump. The high-pressure pump in the equipment injects the raw materials at high pressure, ensuring thorough mixing in the mixing chamber and guaranteeing the uniformity of the reactants and the foaming agent.

(2) Reaction and Foaming: The mixed raw materials enter the reaction zone under high pressure. Due to the chemical reaction, the polyurethane raw materials begin to foam, while cyclopentane, as a foaming agent, rapidly volatilizes under high temperature and pressure, forming a foam structure. At this point, the expansion and curing process of the foam material begins, ultimately forming the desired polyurethane foam product.

(3) Injection and Molding: The foamed polyurethane material is injected into the mold or the desired production part through a nozzle or injection system. High-pressure injection allows the material to quickly fill the mold and distribute evenly within it, ultimately forming the desired shape and density. As foaming continues, the material gradually solidifies, forming a lightweight and high-efficiency foam structure.

(4) Cooling and Curing: After injection, the foamed material enters the cooling zone, where the temperature is lowered by a cooling system to ensure stable curing of the foamed material, ultimately obtaining the desired polyurethane foam product.

3. Advantages of Cyclopentane Polyurethane High-Pressure Foaming Injection Molding Machine

High Efficiency and Energy Saving: The cyclopentane polyurethane high-pressure foaming injection molding machine utilizes high-pressure technology to improve foaming efficiency and uses cyclopentane as a green foaming agent, reducing the negative environmental impact of traditional foaming agents (such as HCFCs or HFCs). Cyclopentane foaming agents have low GWP and zero ODP, meeting international environmental standards and current demands for green materials.

Precise Control and Stable Quality: The high-pressure foaming injection molding machine can precisely control the mixing ratio, temperature, and pressure of raw materials, ensuring consistent quality and stable performance of polyurethane foam materials produced each time. By controlling the reaction process, the equipment can avoid over-foaming or incomplete reaction, ensuring the uniformity and density of the foamed material.

Improved Production Efficiency: Compared with low-pressure foaming, high-pressure foaming injection technology can complete the foaming process faster, greatly improving production efficiency. High-pressure injection can effectively shorten the production cycle while reducing reliance on manual operation and improving the level of automation.

Improving Material Properties: Cyclopentane polyurethane high-pressure foaming injection molding machines can produce denser and more uniformly structured foamed materials with excellent thermal insulation, compressive strength, and durability. These superior physical properties have led to the widespread application of polyurethane foam materials in construction, automotive, and cold chain logistics.

Cyclopentane polyurethane high-pressure foaming injection molding machines produce high-performance polyurethane foam materials through efficient foaming technology. It not only meets the industry's demand for high-efficiency, environmentally friendly materials but also improves production efficiency and reduces energy consumption through precise control and high-pressure injection technology. With increasing environmental awareness and the promotion of green building, cyclopentane polyurethane high-pressure foaming injection molding machines will be applied in more fields, becoming an important tool for promoting industrial and environmental development.
